| Dimensions (L x W x H) | 160 x 150 x 86mm |
| Cybenetics Rating | PLATINUM |
| 80 Plus Rating | PLATINUM |
| ATX Version | ATX 3.0 & ATX 3.1 |
| Protections | OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP |
| Certification |
CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
|
| PFC | 0.99 |
| Input Voltage | 100-240V |
| Input Current |
(1)1300W：15A (2)1000W：13A |
| Input Frequency |
(1)1300W：50-60Hz (2)1000W：50-60Hz |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output |
(1) 1300W (2) 1000W |
| Power Excursion |
1000W: 2000W (*up to 235% of the PSU's rated power for 100μs) 1300W: 2600W (*up to 235% of the PSU's rated power for 100μs) |
| Operating Temperature | 50°C |

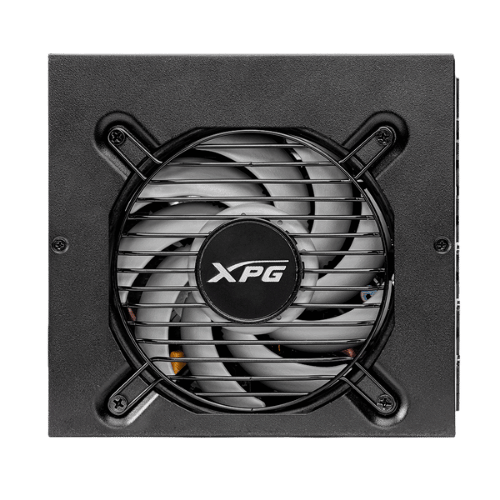

| Fan Size | 120mm |
| Fan Bearing | Double Ball Bearing |
| Fan Speed | 2,150 RPM |
| MTBF | 125,000 hours @ 25°C |
| ATX 24 Pin Connector |
1300W：1 1000W：1 |
| EPS 8 Pin Connector |
1300W：2 1000W：2 |
| PCI-E 6+2 Pin Connector |
1300W：10 1000W：6 |
| Molex 4 Pin Connector |
1300W：8 1000W：4 |
| 12V-2x6 (12+4) Connector (450W) | 1 |
| V-2x6 (12+4) Connector (600W) | 1200W/1000W/850W/750W: 1 |
| SATA Connector |
1300W：12 1000W：8 |
| Weight |
1000W： Product+cables：1.96kg+1.35kg (4.32lb+3.0lb) ±5% with Package：4.13kg (9.1lb) ±5% 1300W： Product+cables：2kg+1.94kg (4.4lb+4.2lb) ±5% with Package：4.6kg (10.1lb) ±5% |
| Warranty | 10 Years |
