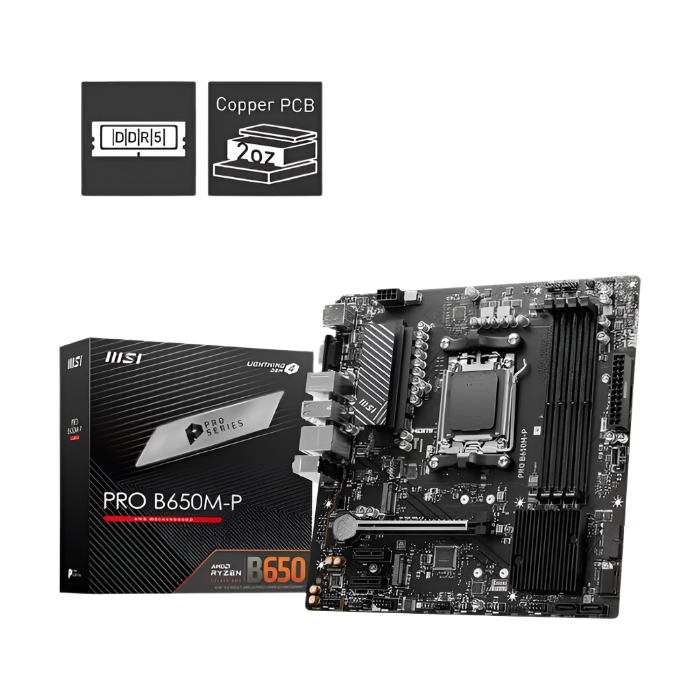

| Chipset | AMD B650 |
|---|---|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
| LAN | Realtek® 8125BG 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
