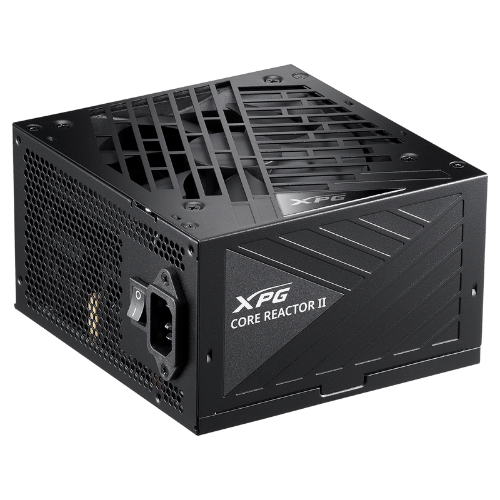

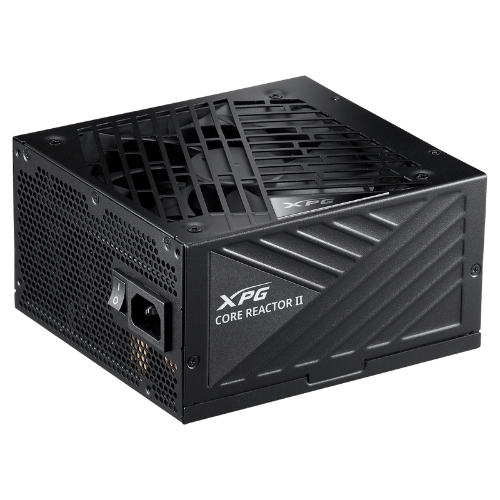

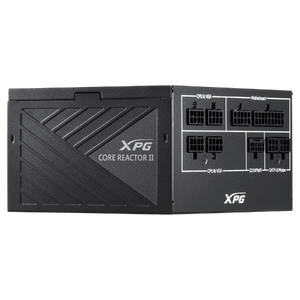

750W GOLD COREREACTOR II Gaming Power Supply MODULAR
Velocity
Regular price
Rs.31,500.00
| Dimensions (L x W x H) |
650W-850W: 140 x 150 x 86mm 1000W-1200W: 160 x 150 x 86mm |
| Cybenetics Rating |
650W-850W: 140 x 150 x 86mm 1000W-1200W: 160 x 150 x 86mm |
| 80 Plus Rating | GOLD |
| ATX Version | ATX 3.0 & ATX 3.1 |
| Protections | CP | OVP | OPP | OTP | UVP | SCP | NLO | SIP |
| Certification | CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM |
| PFC | 0.99 |
| Input Voltage | 100-240V |
| Input Current | 1200W: 15A 1000W: 13A 850W: 12A 750W: 10A 650W: 10A |
| Input Frequency | 650/750/850/1000/1200W:47Hz-63Hz |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output |
1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A 1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A 850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A 750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A 650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A |
| Power Excursion |
1200W: 2820W(*up to 235% of the PSU's rated power for 100μs) 1000W: 2350W(*up to 235% of the PSU's rated power for 100μs) 850W: 1997W (*up to 235% of the PSU's rated power for 100μs) 750W: 1762W (*up to 235% of the PSU's rated power for 100μs) 650W: 1527W(*up to 235% of the PSU's rated power for 100μs) |
| Operating Temperature | 50°C |

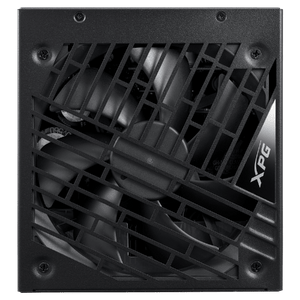

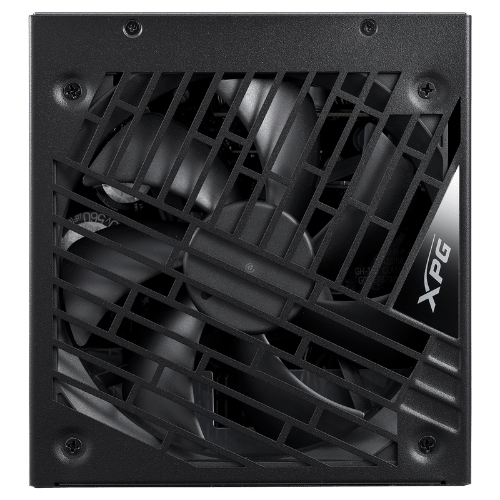

| Fan Size |
650W-850W: 120mm FDB Fan 1000W-1200W: 135mm FDB Fan |
| Fan Bearing | FDB (Fluid Dynamic Bearing)* |
| Fan Speed | 2400 RPM |
| MTBF |
100K hours at full load
|

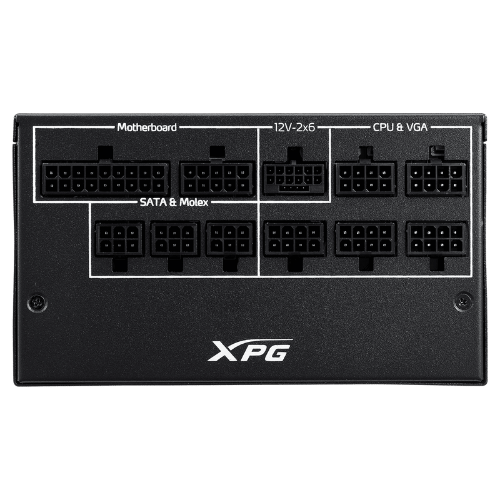

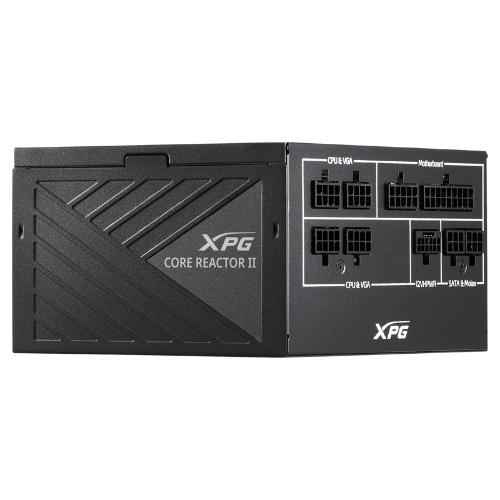

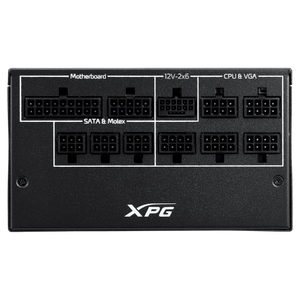

| ATX 24 Pin Connector |
1200W/1000W:1 850W/750W/650W:1 |
| EPS 8 Pin Connector |
1200W/1000W:2 850W/750W/650W:2 |
| PCI-E 6+2 Pin Connector |
1200W/1000W:8
850W/750W:6 650W:4 |
| Molex 4 Pin Connector |
1200W/1000W:3 850W/750W/650W:4 |
| 12V-2x6 (12+4) Connector (450W) |
1200W/1000W:3 850W/750W/650W:4 |
| V-2x6 (12+4) Connector (600W) | 1200W/1000W/850W/750W: 1 |
| SATA Connector |
1200W/1000W:9 850W/750W/650W:8 |
| Weight |
1200W/1000W: Product+cables：1.77kg+1.28kg with Package:3.43kg 850W/750W: Product+cables：1596g+1254g with Package:3.1kg 650W: Product+cables：1299g+1231g with Package:2.78kg |
| Warranty | 10 years |
