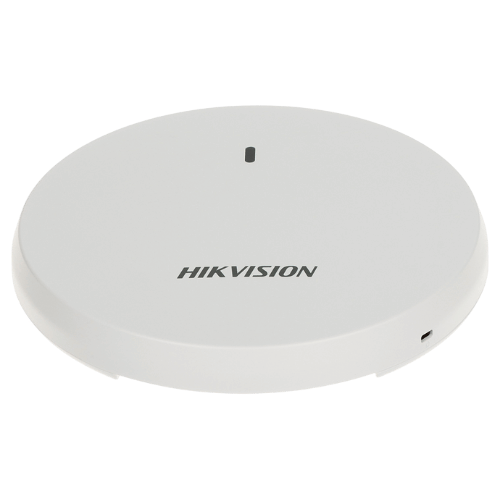

Hikvision DS-3WAP522-SI Wi-Fi 5 Ceiling Access Point | 1200Mbps

Hikvision DS-3WAP522-SI Wi-Fi 5 Ceiling Access Point | 1200Mbps

19 sold in last 24 hours

Rs.17,800.00 PKR

11 people are viewing this right now

Hurry Up! Only 2 Left in Stock!

Out of stock

I agree with the terms and conditions

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Oct 15 - Oct 19

Availability: In Stock Unavailable

Tags:

Guarantee safe & Secure checkout

Description
Additional Information
Shipping & Return

Weight0.4 kg (0.88 lb)
Installation ModeDesk-Mounted,Wall-Mounted,Ceiling Mounting
Working Temperature0 °C to 40 °C (32 °F to 104 °F)
Working Humidity5% to 95% (no condensation)
Storage Temperature-40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity5% to 95% (no condensation)
Product Dimensions (W × H × D)220 mm × 220 mm × 35 mm (8.66'' × 8.66'' × 1.37'')
Packing List1200 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
Power ConsumptionMax. 11.35 W

WLAN Parameters
Maximum Number of Clients256
Recommended Number of Clients80
Maximum Number of SSIDs8
Working Frequency Bandradio 1: 5G(11a/an/ac), radio 2: 2.4G(11b/g/gn)
Wi-Fi StandardsWi-Fi 5
Wi-Fi Speed2.4 G: 300 Mbps,5 G: 867 Mbps
Spatial Streams2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
Channel Width2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/MHz
Number of Antennas2.4 GHz：2；5 GHz：2
Antenna TypeBuilt-in omnidirectional antennas
Antenna Gain2.4 GHz: 3 dBi,5 GHz: 4 dBi
Transmit Power20 dBm
Modulation TechnologyOFDM：BPSK@6/9Mbp、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps; DSSS：DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps; MIMO-OFDM （11n）：MCS 0-15; MIMO-OFDM （11ac）：MCS 0-9

Software Specifications
WLAN SecurityWAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support SSID and VLAN binding,Support 802.11i
Management & MaintenanceCentralized AC management
Version Upgradeupgrade on Web

Hardware Specifications
Interface1 × Gigabit RJ45 uplink port
Power SupplyIEEE 802.3af/at POE,12 VDC 1.5 A
LED IndicatorYellow/green/blue for different working states, flashing mode
Reset ButtonHardware Resetting Button

Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
