| Brand | ASUS |
|---|---|

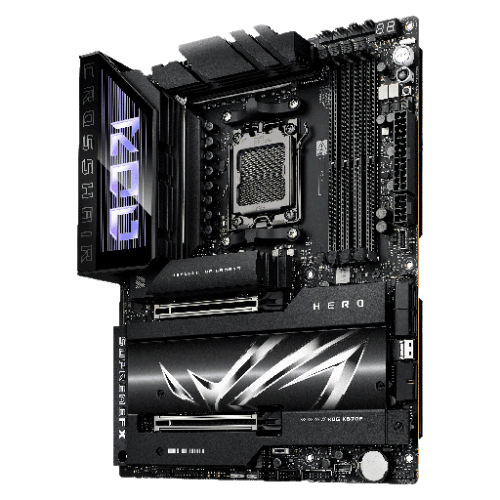

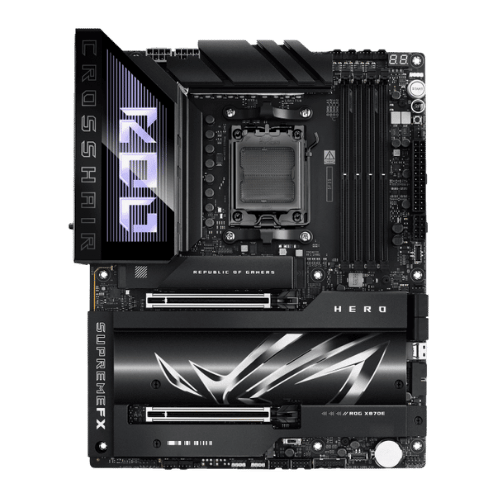

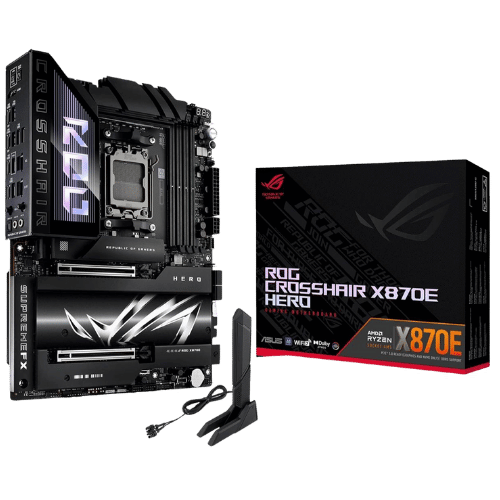

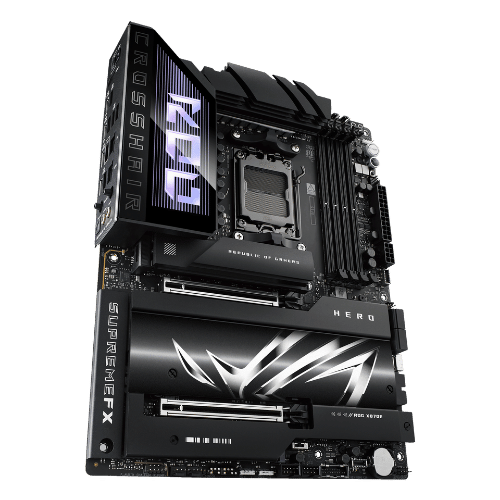

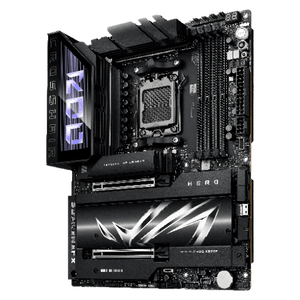

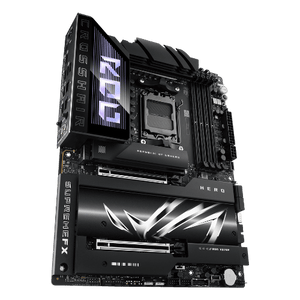

| Model | ROG CROSSHAIR X870E HERO |
| Part Number | 90MB1IE0-M0AAY0 |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors, 8600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) NitroX Slot ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8** or x8/x4/x4 modes***) ** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. ***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
AMD Ryzen 8700/8600 Series Desktop Processors* AMD Ryzen 8500/8300 Series Desktop Processors* – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported |
|---|
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors AMD X870E Chipset SlimSAS slot supports PCIe 4.0 x4 mode. |
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – ESS® ES9219 QUAD DAC – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|---|---|
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 5Gbps + 2.5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |
| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
|---|
| Onboard USB | 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header
Miscellaneous |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector |
| BIOS Feature | 256Mb Flash ROM, UEFI AMI BIOS |
|---|---|
| Windows 11 | Supported |
| Features | Extreme OC Kit – FlexKey button – LN2 Mode – ReTry button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design – Metal backplate ASUS EZ DIY – Backplate – BIOS FlashBack button – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 header(s) Front Panel USB 20Gbps with Quick Charge 4+ Support – Support: up to 60W fast charging and USB Wattage Watcher* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe power connector or else only 27W will be supported. |
|---|
| Package Contents | Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables
Miscellaneous Installation Media Documentation |
|---|
