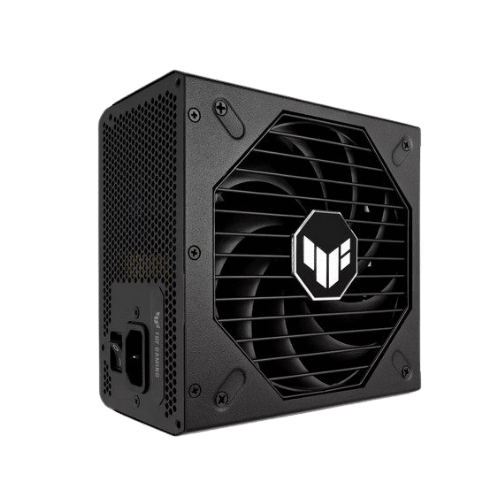

| Brand | ASUS |
|---|---|
| Model | TUF-GAMING-1000G |
| Type | ATX (ATX 3.0 Compatible) / ATX12V |
|---|---|
| Maximum Power | 1000 W |
| Main Connector | 20+4Pin |
| PCI-Express Connector | 4 x 8-Pin |
| SATA Power Connector | 5 |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OPP/OVP/UVP/SCP/OCP/OTP |
| Input Voltage | 100 – 240 V |
| Output | +3.3V@25A, +5V@25A, +12V@83.3A, -12V@0.8A, +5VSB@3A |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4 |
| Dimensions | 150 x 150 x 86 mm |
|---|---|
| Weight | 2.48 kg |
| Package Content | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) PCI-E 1-to-2 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable tie x 3 User Manual x 1 |
|---|
